Video System For Tool Analysis

Facebook Share Icon LinkedIn Share Icon Twitter Share Icon Share by EMail icon Print Icon

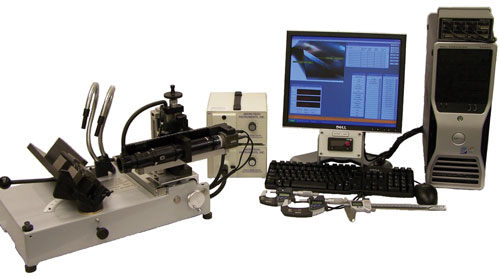

The Model 560 Video permits rapid, precise inspection of virtually all cutting tool geometry characteristics for both new and reground tools. The system uses a series of lenses and a camera to display the image of the tool being analyzed on a video monitor. A Windows-compatible software analysis program is displayed on the monitor where the tool analysis is conducted.

Share

Facebook Share Icon LinkedIn Share Icon Twitter Share Icon Share by EMail icon Print Icon

Related Suppliers

The Model 560 Video permits rapid, precise inspection of virtually all cutting tool geometry characteristics for both new and reground tools. The system uses a series of lenses and a camera to display the image of the tool being analyzed on a video monitor. A Windows-compatible software analysis program is displayed on the monitor where the tool analysis is conducted.

According to the company, the model features an easy-to-use, powerful software program for Windows that can acquire, archive, analyze and annotate video images. It uses various lenses, a camera, a computer system and a monitor to display the tool images. Tool geometries, as well as various geometric data, are displayed directly on the monitor.
